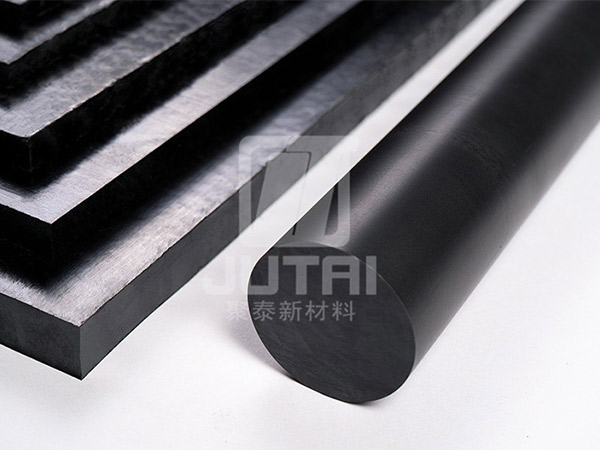

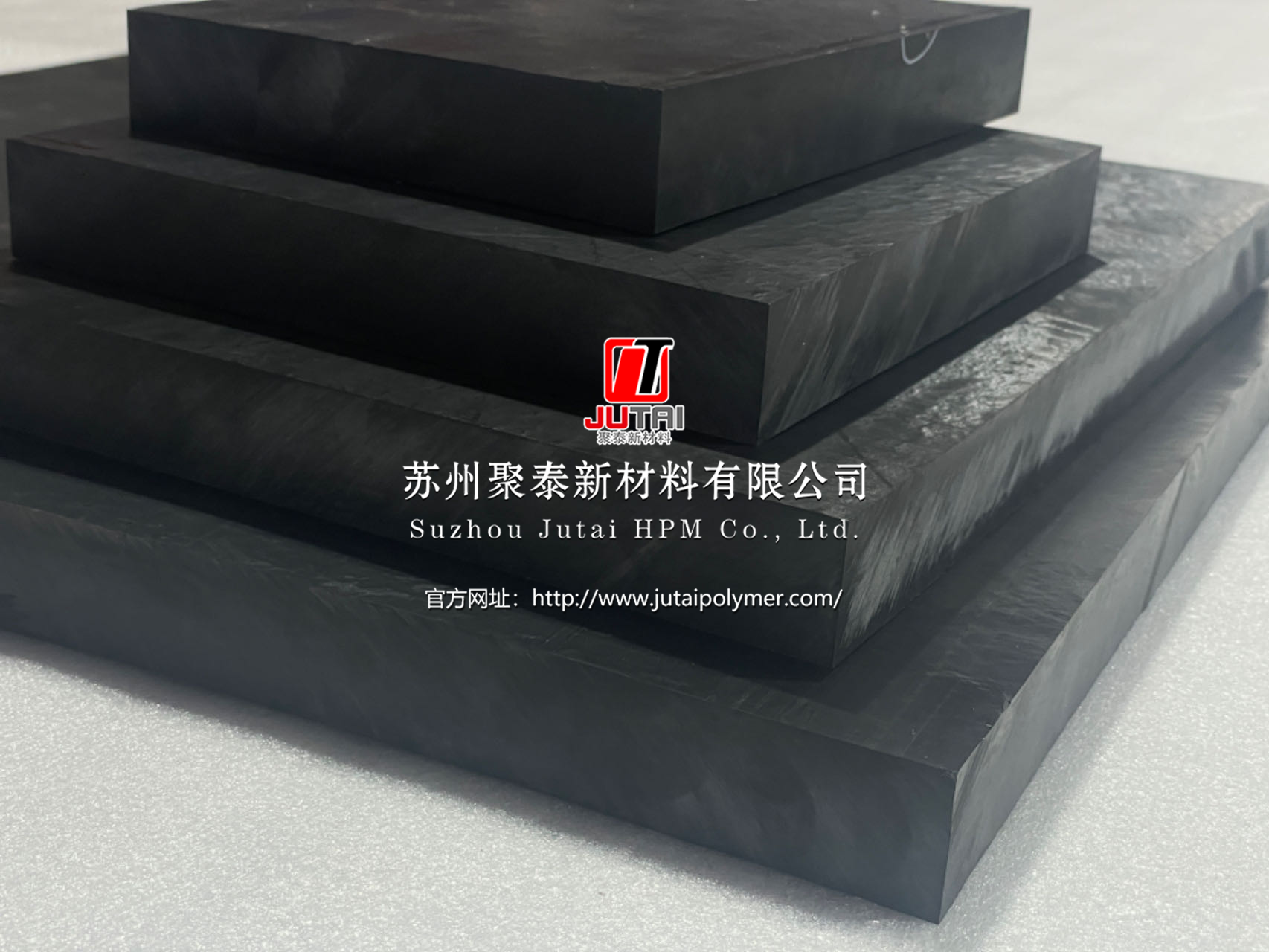

JUTAIPEEK®WR01, Wear resistance PEEK SHEET is a wear-resistant polyetheretherketone (PEEK) profile. WR stands for Wear Resistance. WR01 is a PEEK product modified with 10% PTFE, 10% graphite powder, and 10% carbon fiber.
This product features a low friction coefficient, high wear resistance, and self-lubricating properties, making it a bearing-grade PEEK composite material. It is suitable for applications in polymer bearings, gears, dynamic seals, and other fields, especially for friction applications that require low noise, low vibration, and resistance to corrosive media.
JUTAIPEEK®WR01, Wear resistance PEEK SHEET is a wear-resistant polyetheretherketone (PEEK) profile. WR stands for Wear Resistance. WR01 is a PEEK product modified with 10% PTFE, 10% graphite powder, and 10% carbon fiber.
This product features a low friction coefficient, high wear resistance, and self-lubricating properties, making it a bearing-grade PEEK composite material. It is suitable for applications in polymer bearings, gears, dynamic seals, and other fields, especially for friction applications that require low noise, low vibration, and resistance to corrosive media.
● Excellent sliding and friction performance;
● High strength and high rigidity;
● High dimensional stability plastic
● High thermal conductivity;
● High heat resistance plastic
● Excellent corrosion resistance.
● Excellent sliding and friction performance;
● High strength and high rigidity;
● High dimensional stability plastic
● High thermal conductivity;
● High heat resistance plastic
● Excellent corrosion resistance.
— Automotive industry
— Sealing industry
— Mechanical engineering industry
Bushings and Bearings ,Gears and Sprockets, Manifolds, Pump and Valve Components, Rollers, Wear Strips, Pump Case Wear Rings, Structural Components, High Strength Dimensionally Stable Components
— Automotive industry
— Sealing industry
— Mechanical engineering industry
Bushings and Bearings ,Gears and Sprockets, Manifolds, Pump and Valve Components, Rollers, Wear Strips, Pump Case Wear Rings, Structural Components, High Strength Dimensionally Stable Components
Performance | Test Method | Unit | Wear Resistance PEEK |
Color | Eye | / | black |
Density | ISO 1183-1 | g/cm3 | 1.43 |
Tensile Strength | ISO 527-2 | MPa | ≥90 |
Tensile Modulus | ISO 527-2 | GPa | ≥6 |
Charpy Impact Strength(Notched) | ISO 179 | kJ/m2 | ≥4.0 |
Flexural Strength | ISO 178 | MPa | ≥140 |
Flexural Modulus | ISO 178 | GPa | ≥6 |
Rockwell Hardness | ISO 2039-2 | M | ≥100 |
Melt Temperature | ISO 11357-3 | ℃ | ≥334 |
Thermal Conductivity | ISO 8302 | W/(m-K) | 0.7-1.0 |
Coefficient of Linear Thermal Expansion | ISO 11359-2 | 10-6/K | ≤50 |
Long-term ServiceTemperature | UL 746B | ℃ | 240 |
Heat Deflection Temperature | ISO 75-2 | ℃ | ≥260 |
Water Absorption(23℃,water,24h) | ISO 62 Method 1 | % | ≤0.10 |
Volume Resistivity | IEC62631-3-1 | Q ·cm | ≤10^11 |
Flame Retardancy | UL 94 | / | V-0 |
Frictional Coefficient | ASTM D3702 | / | 0.15±0.05 |
Wear Rate | um/h | 4.2±0.8 |
Notes: Frictional coefficient and wear rate were tested according to ASTM D3702, that is using thrust washer testing machine. Rubbing pair is PEEK sample thrust washer and 45# steel washer, and the contact area is 1.29cm2, and the inner diameter of the PEEK sample is 25mm. The applied load is 0.35MPa and the rubbing velocity is 2m/s.
Performance | Test Method | Unit | Wear Resistance PEEK |
Color | Eye | / | black |
Density | ISO 1183-1 | g/cm3 | 1.43 |
Tensile Strength | ISO 527-2 | MPa | ≥90 |
Tensile Modulus | ISO 527-2 | GPa | ≥6 |
Charpy Impact Strength(Notched) | ISO 179 | kJ/m2 | ≥4.0 |
Flexural Strength | ISO 178 | MPa | ≥140 |
Flexural Modulus | ISO 178 | GPa | ≥6 |
Rockwell Hardness | ISO 2039-2 | M | ≥100 |
Melt Temperature | ISO 11357-3 | ℃ | ≥334 |
Thermal Conductivity | ISO 8302 | W/(m-K) | 0.7-1.0 |
Coefficient of Linear Thermal Expansion | ISO 11359-2 | 10-6/K | ≤50 |
Long-term ServiceTemperature | UL 746B | ℃ | 240 |
Heat Deflection Temperature | ISO 75-2 | ℃ | ≥260 |
Water Absorption(23℃,water,24h) | ISO 62 Method 1 | % | ≤0.10 |
Volume Resistivity | IEC62631-3-1 | Q ·cm | ≤10^11 |
Flame Retardancy | UL 94 | / | V-0 |
Frictional Coefficient | ASTM D3702 | / | 0.15±0.05 |
Wear Rate | um/h | 4.2±0.8 |
Notes: Frictional coefficient and wear rate were tested according to ASTM D3702, that is using thrust washer testing machine. Rubbing pair is PEEK sample thrust washer and 45# steel washer, and the contact area is 1.29cm2, and the inner diameter of the PEEK sample is 25mm. The applied load is 0.35MPa and the rubbing velocity is 2m/s.
PEEKWR01 Sheet Specification | ||
Dimension | Length(mm) | Weight(kg) |
6 x 620 | 1000 | 6.89 |
8 x 620 | 1000 | 9.18 |
10 x 620 | 1000 | 11.01 |
12 x 620 | 1000 | 12.85 |
15 x 620 | 1000 | 16.06 |
16 x 620 | 1000 | 17.45 |
20 x 620 | 1000 | 21.12 |
25 x 620 | 1000 | 25.71 |
30 x 620 | 1000 | 30.30 |
40 x 620 | 1000 | 39.48 |
50 x 620 | 1000 | 48.54 |
PEEKWR01 Sheet Specification | ||
Dimension | Length(mm) | Weight(kg) |
6 x 620 | 1000 | 6.89 |
8 x 620 | 1000 | 9.18 |
10 x 620 | 1000 | 11.01 |
12 x 620 | 1000 | 12.85 |
15 x 620 | 1000 | 16.06 |
16 x 620 | 1000 | 17.45 |
20 x 620 | 1000 | 21.12 |
25 x 620 | 1000 | 25.71 |
30 x 620 | 1000 | 30.30 |
40 x 620 | 1000 | 39.48 |
50 x 620 | 1000 | 48.54 |
