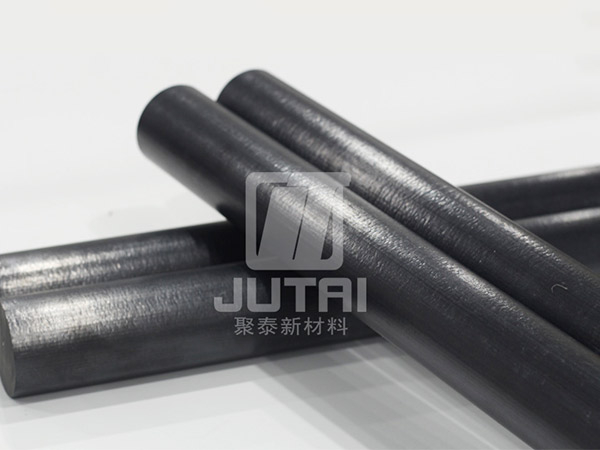

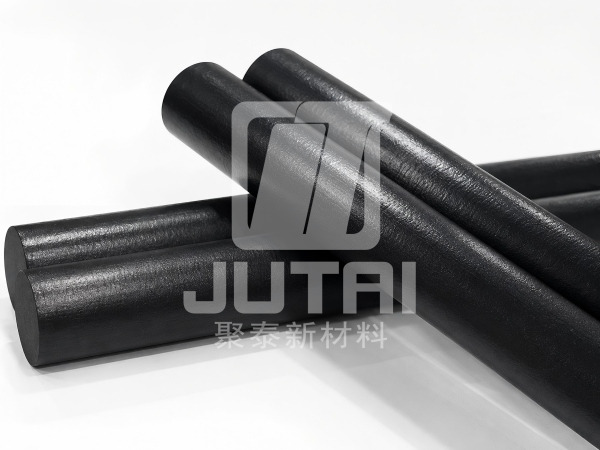

PPS GF40 ROD is a 40% short-cut glass fiber reinforced polyphenylene sulfide (PPS) rod profile. This product exhibits excellent thermal stability, insulation, and flame retardancy. Compared to unreinforced PPS materials,chemical resistance polyphenylene sulfide offers a significantly higher heat deflection temperature, increased strength and modulus, improved wear resistance, and a lower coefficient of thermal expansion.
This product is suitable for environments with high stress under high temperatures, such as various mechanical load-bearing components, sealing bearing frameworks, and automotive chassis.
PPS GF40 ROD is a 40% short-cut glass fiber reinforced polyphenylene sulfide (PPS) rod profile. This product exhibits excellent thermal stability, insulation, and flame retardancy. Compared to unreinforced PPS materials,chemical resistance polyphenylene sulfide offers a significantly higher heat deflection temperature, increased strength and modulus, improved wear resistance, and a lower coefficient of thermal expansion.
This product is suitable for environments with high stress under high temperatures, such as various mechanical load-bearing components, sealing bearing frameworks, and automotive chassis.
● High tensile strength, above 80 MPa;
● High flexural strength, above 135 MPa;
● Excellent thermo-mechanical load capacity, with a heat deflection temperature above 230°C;
● Superior flame resistance and arc resistance;
● Outstanding insulation properties;
● Excellent dimensional stability, with a low coefficient of thermal expansion;
● High heat resistance, suitable for long-term use at 200°C - 220°C.
● High tensile strength, above 80 MPa;
● High flexural strength, above 135 MPa;
● Excellent thermo-mechanical load capacity, with a heat deflection temperature above 230°C;
● Superior flame resistance and arc resistance;
● Outstanding insulation properties;
● Excellent dimensional stability, with a low coefficient of thermal expansion;
● High heat resistance, suitable for long-term use at 200°C - 220°C.
1. Electronics Industry: Connectors, IC sockets, printed circuit boards, and IC and LSI packaging
2. Electrical Industry: Insulating bases, coil frames, contact switches, fuse holders, and engine components
3. Automotive Industry: Engine and alternator components, fuel pump and ignition device components, carburetor parts, various sensor components, distribution panels, exhaust recirculation valves, and air cold start heater components
4. Mechanical Industry: Various compressor components, valves, computer parts, flow meters, testing equipment parts, copier components, sensors, sprayers, camera parts, and more
1. Electronics Industry: Connectors, IC sockets, printed circuit boards, and IC and LSI packaging
2. Electrical Industry: Insulating bases, coil frames, contact switches, fuse holders, and engine components
3. Automotive Industry: Engine and alternator components, fuel pump and ignition device components, carburetor parts, various sensor components, distribution panels, exhaust recirculation valves, and air cold start heater components
4. Mechanical Industry: Various compressor components, valves, computer parts, flow meters, testing equipment parts, copier components, sensors, sprayers, camera parts, and more
Performance | Test Method | Unit | PPSRNAV |
Color | Eye | / | Black |
Density | ISO1183-1 | g/cm3 | 1.66 |
Tensile Strength | ISO 527-2 | MPa | ≥80 |
Tensile Modulus | ISO527-2 | GPa | ≥5.0 |
Izod Impact Strength(Notched) | ISO 180 | kJ/m2 | ≥6.0 |
Flexural Strength | ISO 178 | MPa | ≥135 |
FlexuralModulus | ISO 178 | GPa | ≥7.0 |
Coefficient of Linear Thermal Expansion | ISO11359-2 | 10-6/K | ≤45 |
Long-term Service Temperature | UL 746B | ℃ | 200-220 |
Heat Deflection Temperature | ISO 75-2 | ℃ | ≥230 |
Water Absorption(23℃、Water、24h) | ISO 62 method 1 | % | ≤0.05 |
Flame Retardancy | UL 94 | / | V-0 |
Volume Resistivity | IEC 62631-3-1 | Q-cm | ≥10A14 |
Dielectric Strength | IEC 60243-1 | kV/mm | ≥15 |
DielectricConstant(1MHz) | IEC 62631-2-1 | / | 3.8 |
Dielectric Loss(1MHz) | IEC 62631-2-1 | / | 4.8*10^-3 |
Performance | Test Method | Unit | PPSRNAV |
Color | Eye | / | Black |
Density | ISO1183-1 | g/cm3 | 1.66 |
Tensile Strength | ISO 527-2 | MPa | ≥80 |
Tensile Modulus | ISO527-2 | GPa | ≥5.0 |
Izod Impact Strength(Notched) | ISO 180 | kJ/m2 | ≥6.0 |
Flexural Strength | ISO 178 | MPa | ≥135 |
FlexuralModulus | ISO 178 | GPa | ≥7.0 |
Coefficient of Linear Thermal Expansion | ISO11359-2 | 10-6/K | ≤45 |
Long-term Service Temperature | UL 746B | ℃ | 200-220 |
Heat Deflection Temperature | ISO 75-2 | ℃ | ≥230 |
Water Absorption(23℃、Water、24h) | ISO 62 method 1 | % | ≤0.05 |
Flame Retardancy | UL 94 | / | V-0 |
Volume Resistivity | IEC 62631-3-1 | Q-cm | ≥10A14 |
Dielectric Strength | IEC 60243-1 | kV/mm | ≥15 |
DielectricConstant(1MHz) | IEC 62631-2-1 | / | 3.8 |
Dielectric Loss(1MHz) | IEC 62631-2-1 | / | 4.8*10^-3 |
PPS Natural Rod Specification | |||||
Diameter x Length (mm) | Unit Weight (Kg) | Diameter x Length (mm) | Unit Weight (Kg) | Diameter x Length (mm) | Unit Weight (Kg) |
8x1000 | 0.100 | 8x2000 | 0.200 | 8x3000 | 0.300 |
10x1000 | 0.150 | 10x2000 | 0.300 | 10x3000 | 0.450 |
12x1000 | 0.22 | 12x2000 | 0.44 | 12x3000 | 0.66 |
15x1000 | 0.34 | 15x2000 | 0.68 | 15x3000 | 1.02 |
20x1000 | 0.59 | 20x2000 | 1.18 | 20x3000 | 1.77 |
25x1000 | 0.93 | 25x2000 | 1.86 | 25x3000 | 2.79 |
30x1000 | 1.31 | 30x2000 | 2.62 | 30x3000 | 3.93 |
35x1000 | 1.74 | 35x2000 | 3.48 | 35x3000 | 5.22 |
40x1000 | 2.32 | 40x2000 | 4.64 | 40x3000 | 6.96 |
45x1000 | 2.91 | 45x2000 | 5.82 | 45x3000 | 8.73 |
PPS Natural Rod Specification | |||||
Diameter x Length (mm) | Unit Weight (Kg) | Diameter x Length (mm) | Unit Weight (Kg) | Diameter x Length (mm) | Unit Weight (Kg) |
8x1000 | 0.100 | 8x2000 | 0.200 | 8x3000 | 0.300 |
10x1000 | 0.150 | 10x2000 | 0.300 | 10x3000 | 0.450 |
12x1000 | 0.22 | 12x2000 | 0.44 | 12x3000 | 0.66 |
15x1000 | 0.34 | 15x2000 | 0.68 | 15x3000 | 1.02 |
20x1000 | 0.59 | 20x2000 | 1.18 | 20x3000 | 1.77 |
25x1000 | 0.93 | 25x2000 | 1.86 | 25x3000 | 2.79 |
30x1000 | 1.31 | 30x2000 | 2.62 | 30x3000 | 3.93 |
35x1000 | 1.74 | 35x2000 | 3.48 | 35x3000 | 5.22 |
40x1000 | 2.32 | 40x2000 | 4.64 | 40x3000 | 6.96 |
45x1000 | 2.91 | 45x2000 | 5.82 | 45x3000 | 8.73 |
