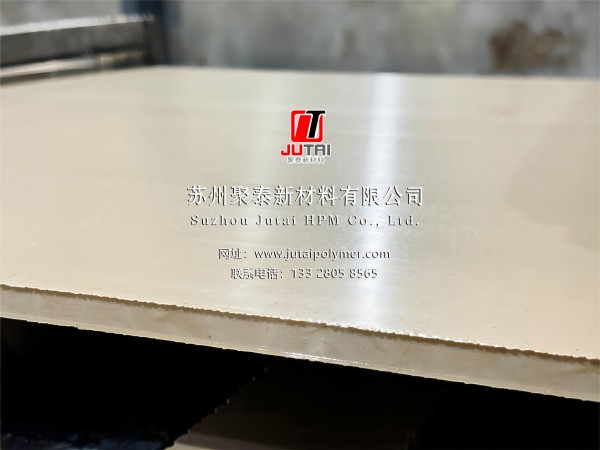

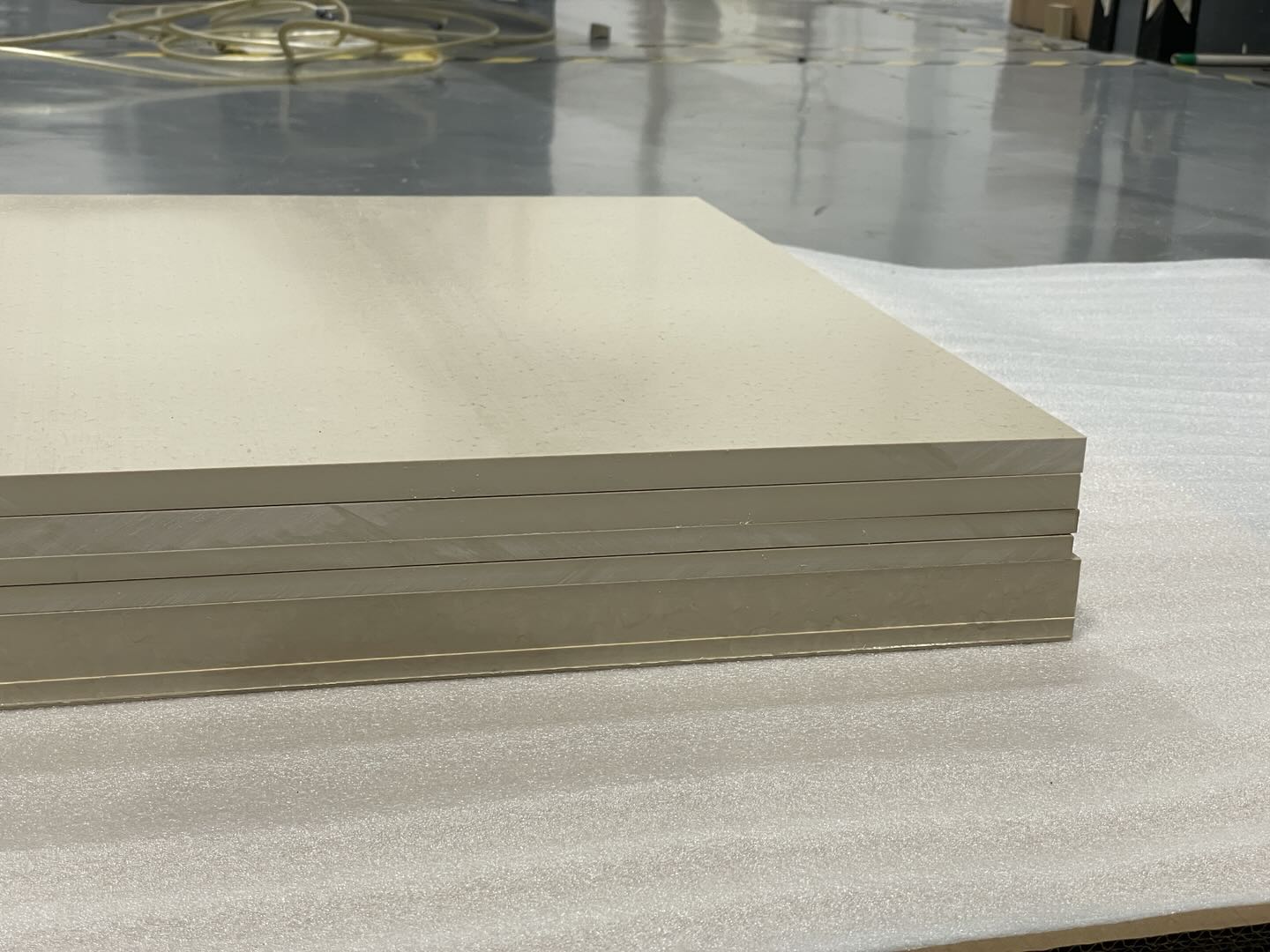

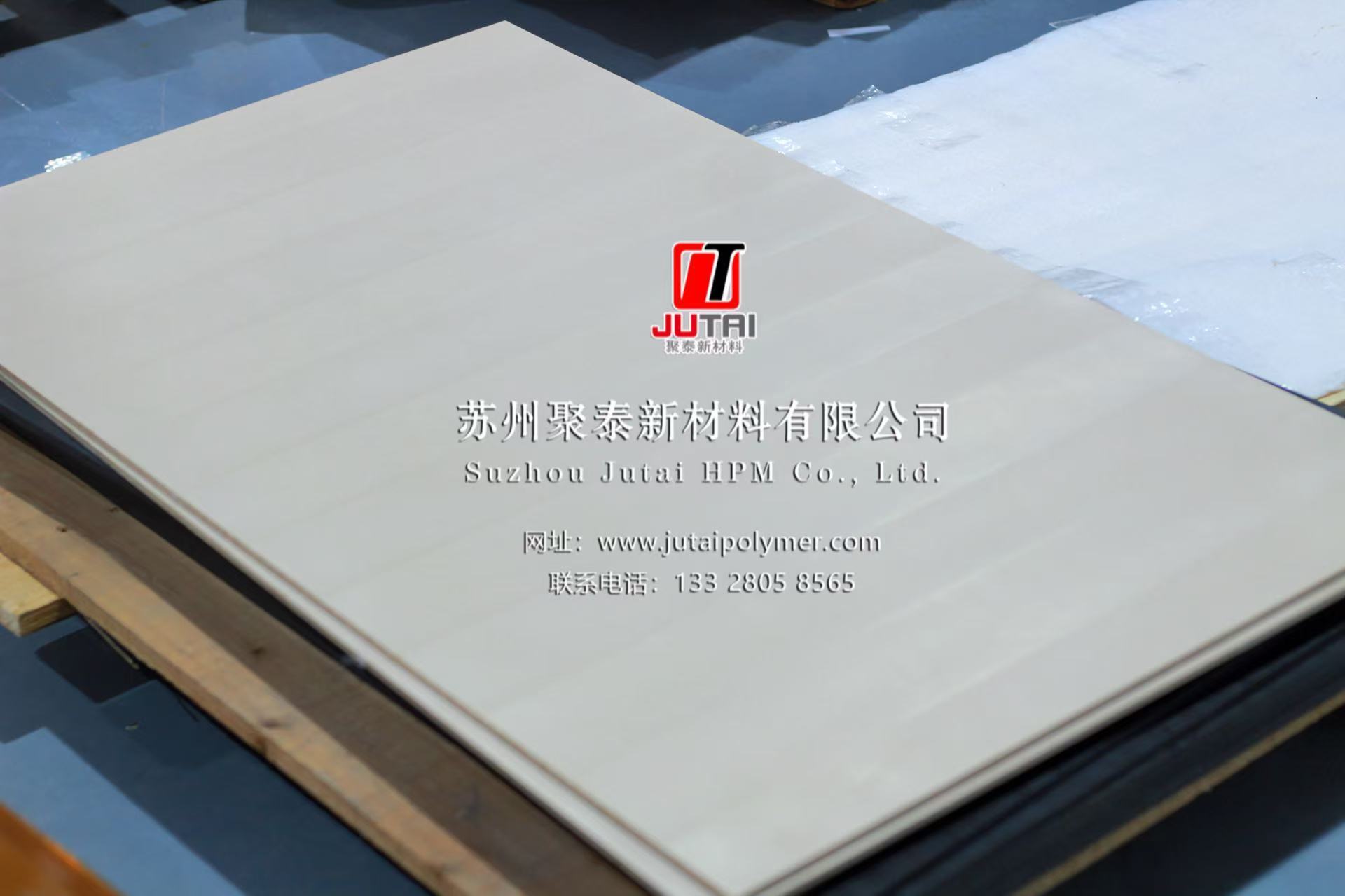

JUTAIPEEK®NA, virgin PEEK sheet. plastic polyether ether ketone sheet,
PEEK natural sheet is a high-temperature engineering thermoplastic plastic sheet profile that exhibits outstanding chemical resistance, fatigue resistance, and thermal stability. plastic polyether ether ketone has excellent mechanical and electrical properties, with a maximum continuous operating temperature of 260°C, and it maintains its mechanical performance exceptionally well in steam or high-pressure water environments up to 200°C-250°C.
JUTAIPEEK®NA, virgin PEEK sheet. plastic polyether ether ketone sheet,
PEEK natural sheet is a high-temperature engineering thermoplastic plastic sheet profile that exhibits outstanding chemical resistance, fatigue resistance, and thermal stability. plastic polyether ether ketone has excellent mechanical and electrical properties, with a maximum continuous operating temperature of 260°C, and it maintains its mechanical performance exceptionally well in steam or high-pressure water environments up to 200°C-250°C.
● Heat deflection temperature 250°C-315 °C
● Long time service temperature 260°C
● Inherent flame retardancy, UL 94V-0
● good UV resistance with black color
● Good machinability
● Very good slide and wear properties
● outstanding chemistry resistant
● High creep resistance
● Resistant of Hydrolysis and heated steam
● Heat deflection temperature 250°C-315 °C
● Long time service temperature 260°C
● Inherent flame retardancy, UL 94V-0
● good UV resistance with black color
● Good machinability
● Very good slide and wear properties
● outstanding chemistry resistant
● High creep resistance
● Resistant of Hydrolysis and heated steam
1. Aerospace
PEEK sheets also exhibit excellent flame resistance, meeting the stringent requirements of the aerospace sector. They can be used in the manufacturing of aircraft engine components, avionics, hydraulic, and pneumatic systems, providing continuous opportunities for innovation and development in the aerospace industry.
2. Automotive Manufacturing
In automotive manufacturing, PEEK sheets are mainly used for producing engine covers, sensor parts, braking systems, and chassis components. Their lightweight properties not only help improve vehicle fuel efficiency but also contribute to reducing the overall weight of the vehicle, enhancing handling and safety.
3. Medical Equipment
The high-temperature stability of PEEK sheets allows them to withstand high-temperature disinfection and sterilization processes. Their low friction coefficient and wear resistance help reduce wear and heat generated by friction in medical devices, thereby extending the product's lifespan.
4. Chemical Industry
PEEK sheets can withstand the corrosion of various chemical solvents and corrosive substances, making them suitable for manufacturing chemical pipelines, valves, storage tanks, pumps, and seal peek.
With high mechanical strength and pressure resistance, PEEK sheets can endure high-pressure and high-temperature chemical environments, ensuring the stability and safety of industrial equipment. Additionally, their wear resistance and low friction coefficient help reduce equipment wear and energy consumption, improving the efficiency of industrial systems.
Instructions for Use:
For turning or milling, remove the surface heat treatment aging layer, generally removing 0.5-1 mm.
Select tungsten carbide aluminum cutting tools for milling operations.
For drilling, start with a small hole and then enlarge it, avoiding the use of large diameter drill bits for direct drilling whenever possible.
During the machining process, maintain sufficient coolant to prevent burning and adhesion of the material to the tool.
It is recommended to use water-soluble cutting fluids.
Product Storage Instructions:
Store in a dry, dark place, away from oily substances.
If not in use, please wrap the product in plastic film.
1. Aerospace
PEEK sheets also exhibit excellent flame resistance, meeting the stringent requirements of the aerospace sector. They can be used in the manufacturing of aircraft engine components, avionics, hydraulic, and pneumatic systems, providing continuous opportunities for innovation and development in the aerospace industry.
2. Automotive Manufacturing
In automotive manufacturing, PEEK sheets are mainly used for producing engine covers, sensor parts, braking systems, and chassis components. Their lightweight properties not only help improve vehicle fuel efficiency but also contribute to reducing the overall weight of the vehicle, enhancing handling and safety.
3. Medical Equipment
The high-temperature stability of PEEK sheets allows them to withstand high-temperature disinfection and sterilization processes. Their low friction coefficient and wear resistance help reduce wear and heat generated by friction in medical devices, thereby extending the product's lifespan.
4. Chemical Industry
PEEK sheets can withstand the corrosion of various chemical solvents and corrosive substances, making them suitable for manufacturing chemical pipelines, valves, storage tanks, pumps, and seal peek.
With high mechanical strength and pressure resistance, PEEK sheets can endure high-pressure and high-temperature chemical environments, ensuring the stability and safety of industrial equipment. Additionally, their wear resistance and low friction coefficient help reduce equipment wear and energy consumption, improving the efficiency of industrial systems.
Instructions for Use:
For turning or milling, remove the surface heat treatment aging layer, generally removing 0.5-1 mm.
Select tungsten carbide aluminum cutting tools for milling operations.
For drilling, start with a small hole and then enlarge it, avoiding the use of large diameter drill bits for direct drilling whenever possible.
During the machining process, maintain sufficient coolant to prevent burning and adhesion of the material to the tool.
It is recommended to use water-soluble cutting fluids.
Product Storage Instructions:
Store in a dry, dark place, away from oily substances.
If not in use, please wrap the product in plastic film.
| Performance | Test Method | Unit | PEEK Natural |
| Color | beige | / | Beige |
| Density | ISO 1183-1 | g/cm3 | 1.3 |
| Tensile Strength | ISO 527-2 | MPa | ≥100 |
| Tensile Modulus | ISO 527-2 | GPa | ≥4.0 |
| Elongation At Break | ISO 527-2 | % | ≥25 |
| Charpy Impact Strength (Notched) | ISO 179 | kJ/m2 | ≥4.0 |
| Flexural Strength | ISO 178 | MPa | ≥150 |
| Flexural Modulus | ISO 178 | GPa | ≥3.5 |
| Rockwell Hardness | ISO 2039-2 | M | ≥100 |
| Shore D Hardness | ISO 868 | Shore D | ≥85 |
| Coefficient of Linear Thermal Expansion | ISO 11359-2 | 10-6/K | ≤65 |
| Long-term ServiceTemperature | UL 746B | ℃ | 250 |
| Heat DeflectionTemperature | ISO 75-2 | ℃ | ≥150 |
| Water Absorption (23℃、Water、24h) | ISO 62 | % | ≤0.1 |
| Flammability Resistance (1.6mm) | UL94 | / | V-0 |
| Volume Resistivity | IEC 62631-3-1 | Q-cm | 1014-1016 |
| Dielectric Strength | IEC 60243-1 | kV/mm | ≥15 |
| Dielectric Constant(1MHz) | IEC 62631-2-1 | / | 3.4 |
| Dielectric Loss(1MHz) | IEC 62631-2-1 | / | 0.086 |
| Performance | Test Method | Unit | PEEK Natural |
| Color | beige | / | Beige |
| Density | ISO 1183-1 | g/cm3 | 1.3 |
| Tensile Strength | ISO 527-2 | MPa | ≥100 |
| Tensile Modulus | ISO 527-2 | GPa | ≥4.0 |
| Elongation At Break | ISO 527-2 | % | ≥25 |
| Charpy Impact Strength (Notched) | ISO 179 | kJ/m2 | ≥4.0 |
| Flexural Strength | ISO 178 | MPa | ≥150 |
| Flexural Modulus | ISO 178 | GPa | ≥3.5 |
| Rockwell Hardness | ISO 2039-2 | M | ≥100 |
| Shore D Hardness | ISO 868 | Shore D | ≥85 |
| Coefficient of Linear Thermal Expansion | ISO 11359-2 | 10-6/K | ≤65 |
| Long-term ServiceTemperature | UL 746B | ℃ | 250 |
| Heat DeflectionTemperature | ISO 75-2 | ℃ | ≥150 |
| Water Absorption (23℃、Water、24h) | ISO 62 | % | ≤0.1 |
| Flammability Resistance (1.6mm) | UL94 | / | V-0 |
| Volume Resistivity | IEC 62631-3-1 | Q-cm | 1014-1016 |
| Dielectric Strength | IEC 60243-1 | kV/mm | ≥15 |
| Dielectric Constant(1MHz) | IEC 62631-2-1 | / | 3.4 |
| Dielectric Loss(1MHz) | IEC 62631-2-1 | / | 0.086 |
PEEK Sheet Specification | ||||||
| Dimension Thickness*Width | Length(mm) | 1M Length Weight(kg) | Length(mm) | 2M Length Weight(kg) | Length(mm) | 3M Length Weight(kg) |
| 1*620 | 1000 | 1.49 | 2000 | 2.98 | 3000 | 4.47 |
| 2*620 | 1000 | 2.32 | 2000 | 4.63 | 3000 | 6.95 |
| 3*620 | 1000 | 3.31 | 2000 | 6.62 | 3000 | 9.93 |
| 4*620 | 1000 | 4.14 | 2000 | 8.27 | 3000 | 12.41 |
| 5*620 | 1000 | 4.94 | 2000 | 9.88 | 3000 | 14.82 |
| 6*620 | 1000 | 5.75 | 2000 | 11.50 | 3000 | 17.25 |
| 8*620 | 1000 | 7.42 | 2000 | 14.83 | 3000 | 22.25 |
| 10*620 | 1000 | 9.23 | 2000 | 18.45 | 3000 | 27.68 |
| 12*620 | 1000 | 10.85 | 2000 | 21.70 | 3000 | 32.55 |
| 15*620 | 1000 | 13.26 | 2000 | 26.53 | 3000 | 39.80 |
| 16*620 | 1000 | 14.15 | 2000 | 28.30 | 3000 | 42.45 |
| 20*620 | 1000 | 17.50 | 2000 | 35.00 | 3000 | 52.50 |
| 25*620 | 1000 | 22.33 | 2000 | 44.65 | 3000 | 66.98 |
| 30*620 | 1000 | 26.35 | 2000 | 52.70 | 3000 | 79.05 |
| 35*620 | 1000 | 30.45 | 2000 | 60.90 | 3000 | 91.35 |
| 40*620 | 1000 | 34.55 | 2000 | 69.10 | 3000 | 103.65 |
| 45*620 | 1000 | 39.10 | 2000 | 78.20 | 3000 | 117.30 |
| 50*620 | 1000 | 43.65 | 2000 | 87.30 | 3000 | 130.95 |
| 60*620 | 1000 | 51.75 | 2000 | 103.50 | 3000 | 155.25 |
| 70*620 | 1000 | 60.50 | 2000 | 121.00 | 3000 | 181.50 |
| 80*620 | 1000 | 68.75 | 2000 | 137.50 | 3000 | 206.25 |
| 90*620 | 1000 | 77.25 | 2000 | 154.50 | 3000 | 231.75 |
| 100*620 | 1000 | 86.00 | 2000 | 172.00 | 3000 | 258.00 |
| 5*1240 | 1000 | 9.88 | 2000 | 19.76 | 3000 | 29.64 |
| 6*1240 | 1000 | 11.50 | 2000 | 23.00 | 3000 | 34.50 |
| 8*1240 | 1000 | 14.83 | 2000 | 29.66 | 3000 | 44.49 |
| 10*1240 | 1000 | 18.45 | 2000 | 36.90 | 3000 | 55.35 |
| 12*1240 | 1000 | 21.70 | 2000 | 43.40 | 3000 | 65.10 |
| 15*1240 | 1000 | 26.53 | 2000 | 53.04 | 3000 | 79.59 |
| 16*1240 | 1000 | 28.30 | 2000 | 56.60 | 3000 | 84.90 |
| 20*1240 | 1000 | 35.00 | 2000 | 70.00 | 3000 | 105.00 |
| 25*1240 | 1000 | 44.65 | 2000 | 89.30 | 3000 | 133.95 |
| 30*1240 | 1000 | 52.70 | 2000 | 105.40 | 3000 | 158.10 |
| 35*1240 | 1000 | 60.90 | 2000 | 121.80 | 3000 | 182.70 |
| 40*1240 | 1000 | 69.10 | 2000 | 138.20 | 3000 | 207.30 |
| 45*1240 | 1000 | 78.20 | 2000 | 156.40 | 3000 | 234.60 |
| 50*1240 | 1000 | 87.30 | 2000 | 174.60 | 3000 | 261.90 |
| 60*1240 | 1000 | 103.50 | 2000 | 207.00 | 3000 | 310.50 |
| 70*1240 | 1000 | 121.00 | 2000 | 242.00 | 3000 | 363.00 |
| 80*1240 | 1000 | 137.50 | 2000 | 275.00 | 3000 | 412.50 |
| 90*1240 | 1000 | 154.50 | 2000 | 309.00 | 3000 | 463.50 |
| 100*1240 | 1000 | 172.00 | 2000 | 344.00 | 3000 | 516.00 |
